EPDM High Voltage

Hook up and Lead wire Belden lead wire EPDM High Voltage

9B0802B, 9B0601B, 9B0401B, 9B0201B, 9B0100B, 9B1A01B, 9B2A00B, 9B3A00B, 9B4A00B

Somos Especialistas en Cables. Distribuimos en toda la Republica Mexicana: Innovative Trade Center, Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Tijuana, B. C. www.innovative.com.mx

Hook up and Lead wire Belden lead wire EPDM High Voltage

Belden
EPDM
conductor trenzado
No UL o CSA
ESPECIFICACIONES DE Hook up and Lead wire Belden lead wire
1. CONDUCTOR: Cobre estañado
2. AISLAMIENTO: EPDM
3. TEMPERATURA: 150ºC
4. VOLTAJE: 7500 V
APLICACIONES DE Hook up and Lead wire Belden lead wire
De alta tensión de plomo y el cable de puente.

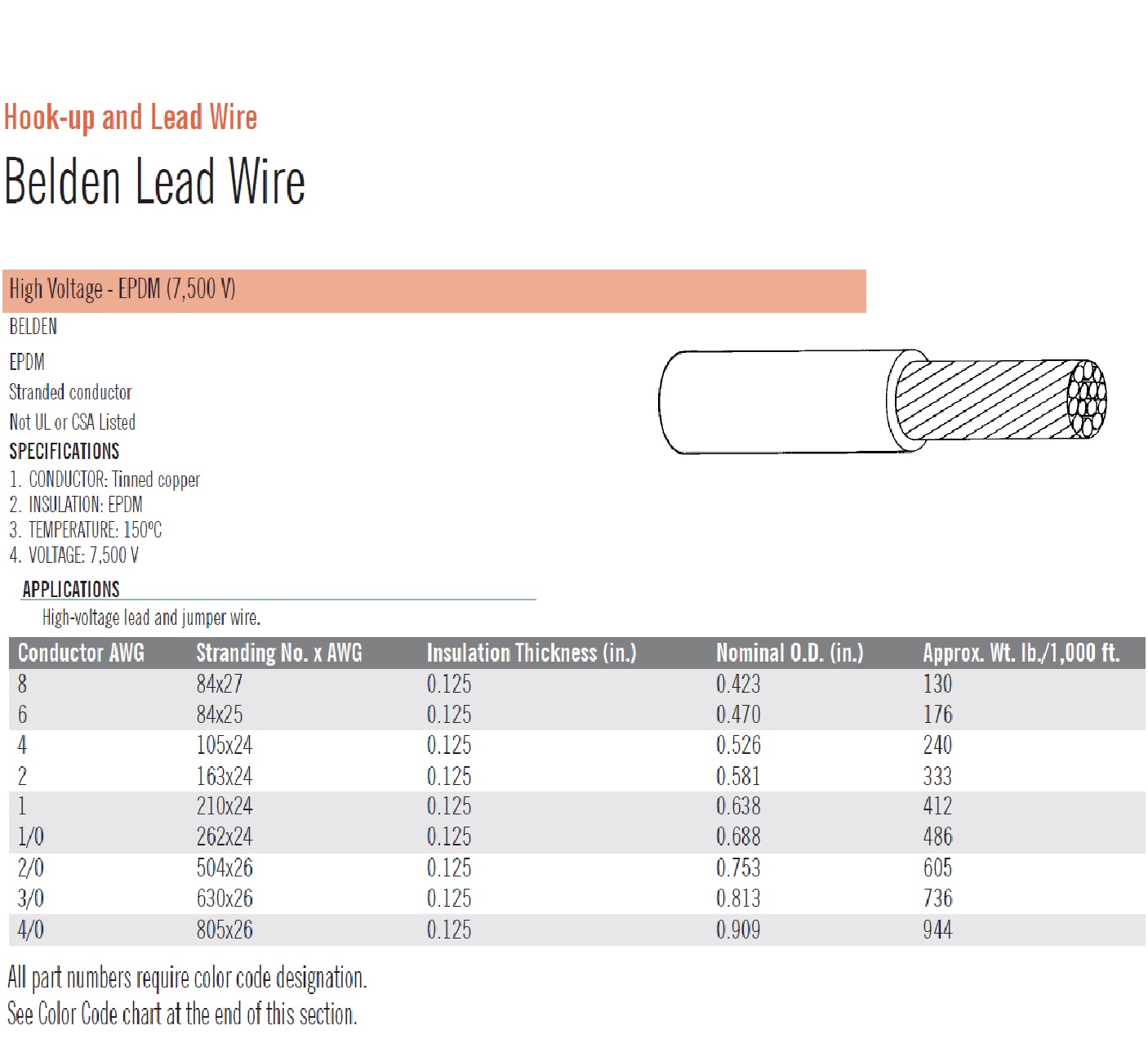

Hook up and Lead wire Belden lead wire EPDM High Voltage

BELDEN
EPDM
Stranded conductor
Not UL or CSA Listed
SPECIFICATIONS Hook up and Lead wire Belden lead wire
1. CONDUCTOR: Tinned copper
2. INSULATION: EPDM
3. TEMPERATURE: 150ºC
4. VOLTAGE: 7,500 V
APPLICATIONS Hook up and Lead wire Belden lead wire
High-voltage lead and jumper wire.

9B0802B-XX, 9B0601B-XX, 9B0401B-XX, 9B0201B-XX, 9B0100B-XX, 9B1A01B-XX, 9B2A00B-XX, 9B3A00B-XX, 9B4A00B-XX

9B0802B, 9B0601B, 9B0401B, 9B0201B, 9B0100B, 9B1A01B, 9B2A00B, 9B3A00B, 9B4A00B
