Hook up and Lead wire UL style 1015 PVC

B9924, B8920, B8919, B8918, B8915, B8917, B8916, B9912, B9910, B8910/B32722, B32720 , B32718

Somos Especialistas en Cables. Distribuimos en toda la Republica Mexicana: Innovative Trade Center, Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Tijuana, B. C. www.innovative.com.mx

Hook up and Lead wire UL style 1015 PVC

BELDEN
CLORURO DE POLIVINILO
Stranded y conductor sólido
UL AWM
CSA TEW
JQA-F (Japón)
ESPECIFICACIONES Hook up and Lead wire UL style
1. CONDUCTOR: Cobre estañado
2. AISLAMIENTO: Policloruro de Vinilo (PVC)
3. NORMAS: UL reconocido estilo AWM 1015 por UL 758. Pases VW-1 prueba de llama vertical, CSA FT1
4. TEMPERATURA: -40 ° C a 105 ° C
5. TENSIÓN: 600 V
APLICACIONES Hook up and Lead wire UL style
El cableado interno de equipos eléctricos y electrónicos.

UNI-HILO CONDUCTOR
Recomendado ciclos de cocción máximo: 48 horas a 275 ° F (135 ° C) 24 horas a 300 ° F (149 ° C).

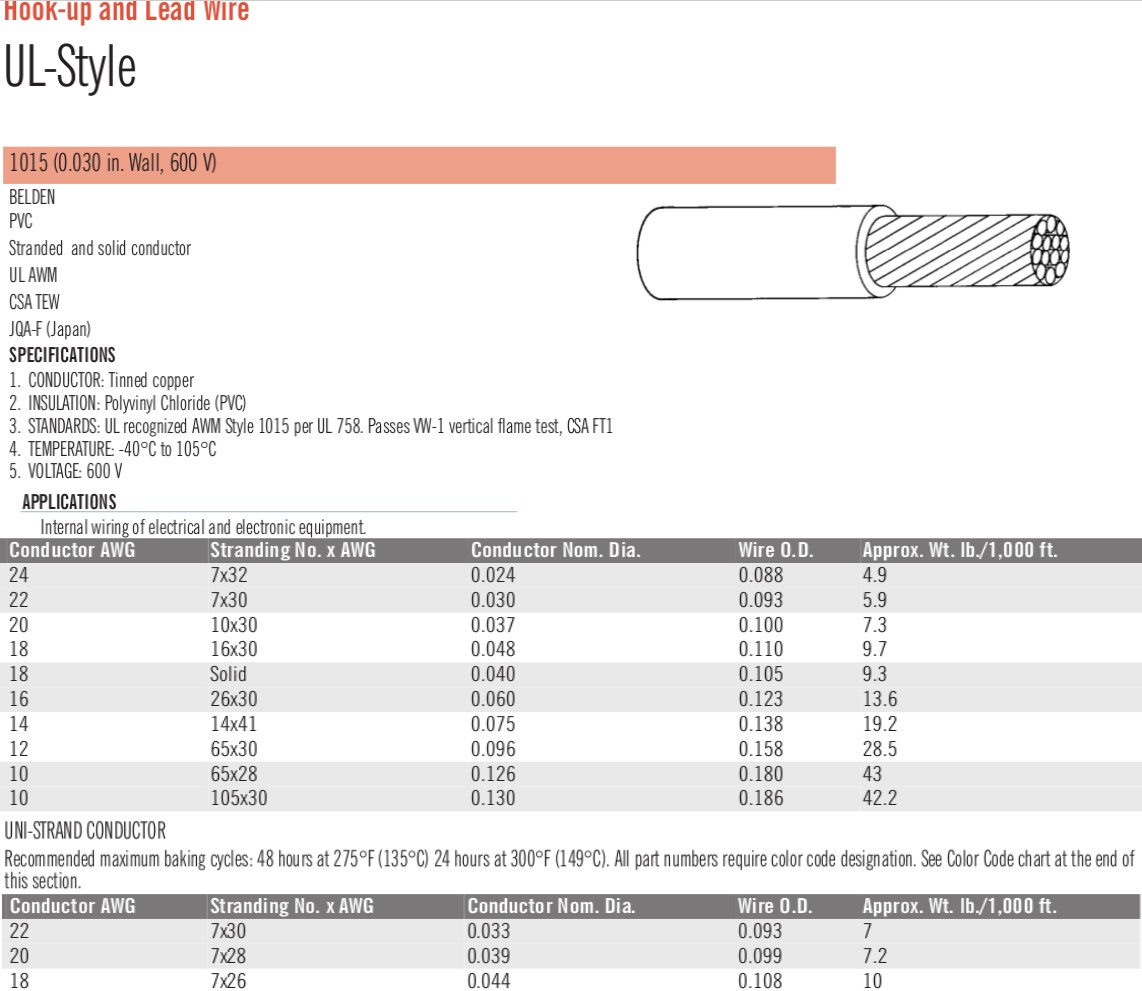

Hook up and Lead wire UL style 1015 PVC

BELDEN
PVC
Stranded and solid conductor
UL AWM
CSA TEW
JQA-F (Japan)
SPECIFICATIONS Hook up and Lead wire UL style
1. CONDUCTOR: Tinned copper
2. INSULATION: Polyvinyl Chloride (PVC)
3. STANDARDS: UL recognized AWM Style 1015 per UL 758. Passes VW-1 vertical flame test, CSA FT1
4. TEMPERATURE: -40°C to 105°C
5. VOLTAGE: 600 V
APPLICATIONS Hook up and Lead wire UL style
Internal wiring of electrical and electronic equipment.

UNI-STRAND CONDUCTOR
Recommended maximum baking cycles: 48 hours at 275°F (135°C) 24 hours at 300°F (149°C).

B9924-XX, B8920-XX, B8919-XX, B8918-XX, B8915-XX, B8917-XX, B8916-XX, B9912-XX, B9910-XX, B8910-XX
B9924 , B8920, B8919 , B8918, B8915 , B8917 , B8916, B9912, B9910, B8910

B32722-XX, B32720-XX, B32718-XX
B32722, B32720 , B32718
