Gray Ribbon 2L280XX Series 1mm Pitch

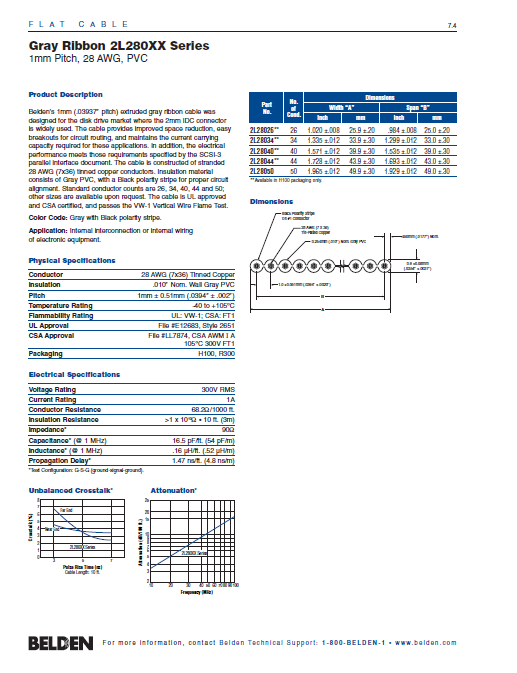

Gray Ribbon 2L280XX Series
1mm Pitch, 28 AWG, PVC

Product Description
Belden’s 1mm (.03937″ pitch) extruded gray ribbon cable was
designed for the disk drive market where the 2mm IDC connector
is widely used. The cable provides improved space reduction, easy
breakouts for circuit routing, and maintains the current carrying
capacity required for these applications. In addition, the electrical
performance meets those requirements specified by the SCSI-3
parallel interface document. The cable is constructed of stranded
28 AWG (7×36) tinned copper conductors. Insulation material
consists of Gray PVC, with a Black polarity stripe for proper circuit
alignment. Standard conductor counts are 26, 34, 40, 44 and 50;
other sizes are available upon request. The cable is UL approved
and CSA certified, and passes the VW-1 Vertical Wire Flame Test.
Color Code: Gray with Black polarity stripe.
Application: Internal interconnection or internal wiring
of electronic equipment.
Physical Specifications
Conductor 28 AWG (7×36) Tinned Copper
Insulation .010″ Nom. Wall Gray PVC
Pitch 1mm ± 0.51mm (.0394″ ± .002″)
Temperature Rating -40 to +105°C
Flammability Rating UL: VW-1; CSA: FT1
UL Approval File #E12683, Style 2651
CSA Approval File #LL7874, CSA AWM I A
105°C 300V FT1
Packaging H100, R300
Electrical Specifications
Voltage Rating 300V RMS
Current Rating 1A
Conductor Resistance 68.2Ω/1000 ft.
Insulation Resistance >1 x 1010Ω • 10 ft. (3m)
Impedance* 90Ω
Capacitance* (@ 1 MHz) 16.5 pF/ft. (54 pF/m)
Inductance* (@ 1 MHz) .16 μH/ft. (.52 μH/m)
Propagation Delay* 1.47 ns/ft. (4.8 ns/m)
