Individually Shielded Overall Foil Braid RS 232 422

Individually Shielded Overall Foil Braid RS 232 422

Multipair cable Individually Shielded Overall Foil Braid RS 232 422

B8162, B8163, B8164, B8165, B8166, B8167, B8168, B8170, B8175, B8178, B8185

Somos Especialistas en Cables. Distribuimos en toda la Republica Mexicana: Innovative Trade Center, Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Tijuana, B. C. www.innovative.com.mx

Multipair cable Individually Shielded Overall Foil Braid RS 232 422

BELDEN
ESPECIFICACIONES DE Multipair cable
1. Los conductores: 24 AWG (7×32). Los pares trenzados
2. AISLAMIENTO: Datalene (polietileno espumado), ver Tabla 3 para el código de color
3. CHAQUETA: Cromo PVC
4. Blindaje: Beldfoil individual cada par con 24 AWG de drenaje de cobre estañado de alambre, Beldfoil general
(100%), pantalla de malla de cobre estañado (65%)
5. NORMAS: UL AWM Style 2493, VW–1, NEC: CM
6. CLASIFICACIÓN: 300 V, -40 ° C a 60 ° C, nom. impedancia de 100 ohmios, nom. velocidad de propagación 78%, nom. capacitancia 12.5 pF / ft.

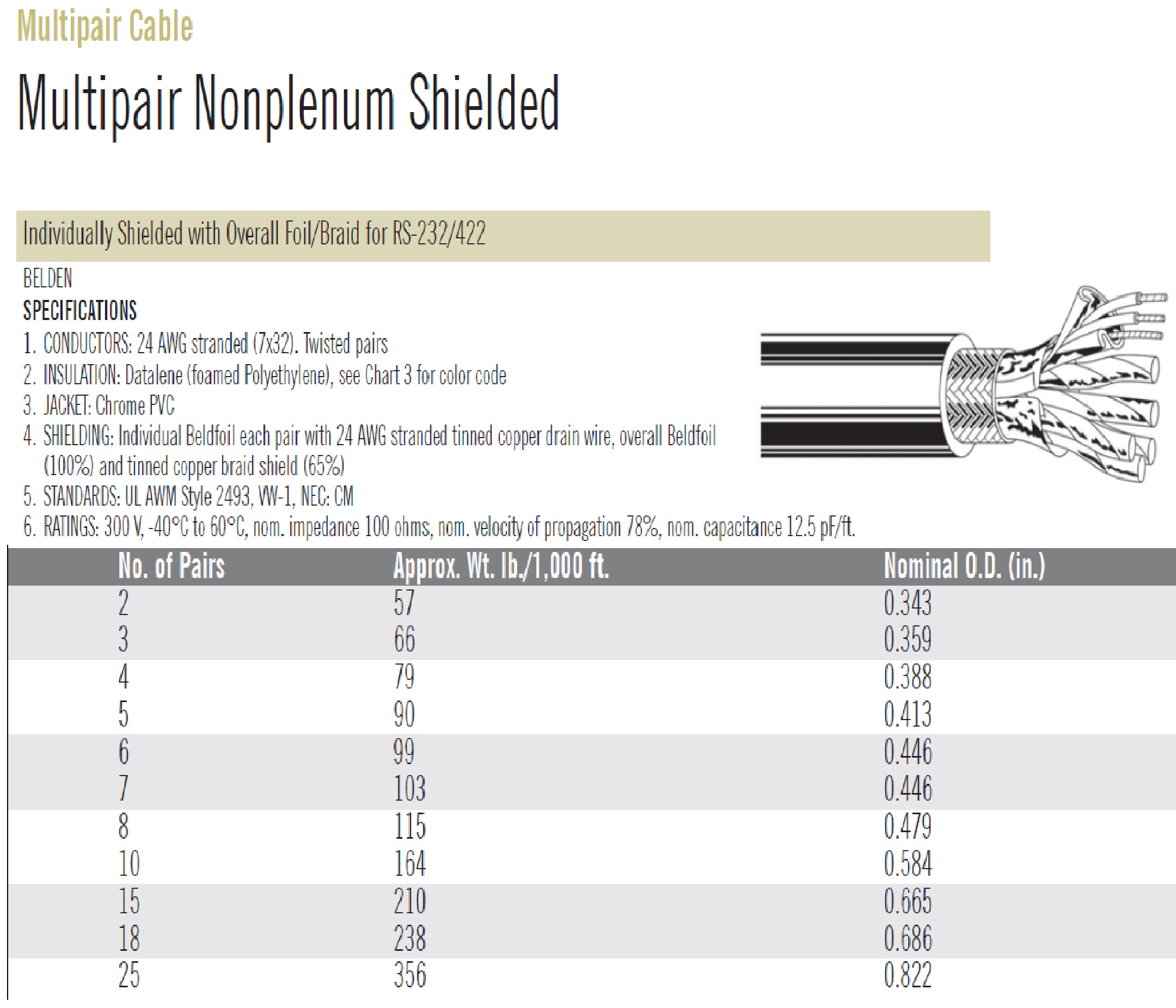

Multipair cable Individually Shielded Overall Foil Braid RS 232 422

BELDEN
SPECIFICATIONS Multipair cable
1. CONDUCTORS: 24 AWG stranded (7×32). Twisted pairs
2. INSULATION: Datalene (foamed Polyethylene), see Chart 3 for color code
3. JACKET: Chrome PVC
4. SHIELDING: Individual Beldfoil each pair with 24 AWG stranded tinned copper drain wire, overall Beldfoil
(100%) and tinned copper braid shield (65%)
5. STANDARDS: UL AWM Style 2493, VW-1, NEC: CM
6. RATINGS: 300 V, -40°C to 60°C, nom. impedance 100 ohms, nom. velocity of propagation 78%, nom. capacitance 12.5 pF/ft.

B8162, B8163, B8164, B8165, B8166, B8167, B8168, B8170, B8175, B8178, B8185
