Modular Enclosure Options

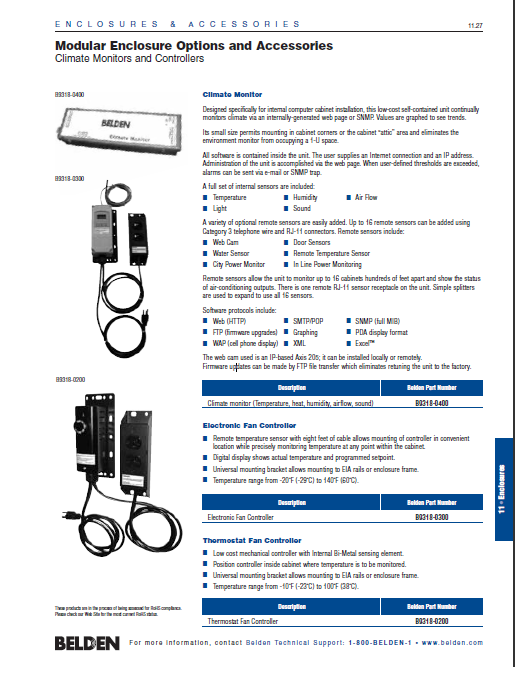

Modular Enclosure Options and Accessories
Climate Monitors and Controllers

Climate Monitor
Designed specifically for internal computer cabinet installation, this low-cost self-contained unit continually
monitors climate via an internally-generated web page or SNMP. Values are graphed to see trends.
Its small size permits mounting in cabinet corners or the cabinet “attic” area and eliminates the
environment monitor from occupying a 1-U space.
All software is contained inside the unit. The user supplies an Internet connection and an IP address.
Administration of the unit is accomplished via the web page. When user-defined thresholds are exceeded,
alarms can be sent via e-mail or SNMP trap.
A full set of internal sensors are included:
■ Temperature ■ Humidity ■ Air Flow
■ Light ■ Sound
A variety of optional remote sensors are easily added. Up to 16 remote sensors can be added using
Category 3 telephone wire and RJ-11 connectors. Remote sensors include:
■ Web Cam ■ Door Sensors
■ Water Sensor ■ Remote Temperature Sensor
■ City Power Monitor ■ In Line Power Monitoring
Remote sensors allow the unit to monitor up to 16 cabinets hundreds of feet apart and show the status
of air-conditioning outputs. There is one remote RJ-11 sensor receptacle on the unit. Simple splitters
are used to expand to use all 16 sensors.
Software protocols include:
■ Web (HTTP) ■ SMTP/POP ■ SNMP (full MIB)
■ FTP (firmware upgrades) ■ Graphing ■ PDA display format
■ WAP (cell phone display) ■ XML ■ Excel™
The web cam used is an IP-based Axis 205; it can be installed locally or remotely.
Firmware updates can be made by FTP file transfer which eliminates retuning the unit to the factory.

Numero de Parte Belden: B9318-0400, B9318-0300, B9318-0200
