Panduct Type HN Hinged Cover Narrow Slot Wiring Duct
HN1.5X2LG6, HN1.5X3LG6, HN2X2LG6, HN2X3LG6, HN2X4LG6, HN3X3LG6, HN3X4LG6, HN4X4LG6
Panduct Type HN Hinged Cover Narrow Slot Wiring Duct
Contactenos en: www.innovative.com.mx Tel: (664) 621 33 36 / 621 30 09 ventas@innovative.com.mx, soporte@innovative.com.mx, Innovative Trade Center Tijuana, B. C. Distribuimos en toda la republica
Panduct ® tipo HN con bisagras tapa ranura angosta del conducto de cableado
Especificaciones:
• Material: PVC libre de plomo
• UL reconocido continuo uso temperatura: 122° F (50° C) Grado de la inflamabilidad • UL 94 V-0
• Cumple con el requisito de sección 13.3.1 NFPA 79-2007 para el material ignífugo
• Provista de orificios de montaje
• Longitud de la base y la cubierta es de 6 pies
Características y beneficios
• Diseño estrecho de ranura y dedo proporciona excelente alambre gestión con diámetros menores, alambre y componentes de alta densidad
• Integrado con cubierta abisagrada diseño permite un fácil acceso a cableado sin la molestia de quitar y reinstalar la cubierta
• Dual-sided bisagra puede abrir hasta 100° de cualquiera pared lateral de la base del conducto para facilitar el acceso al canal
• Tapa retención bridas evitan cubierta deslizante instalado en la base del conducto
• Doble marcador ahorra tiempo de instalación y reduce costo de instalación Diseño de ranura
• restringido retiene el alambre en la ranura para rápida, fácil cable de instalación / desinstalación

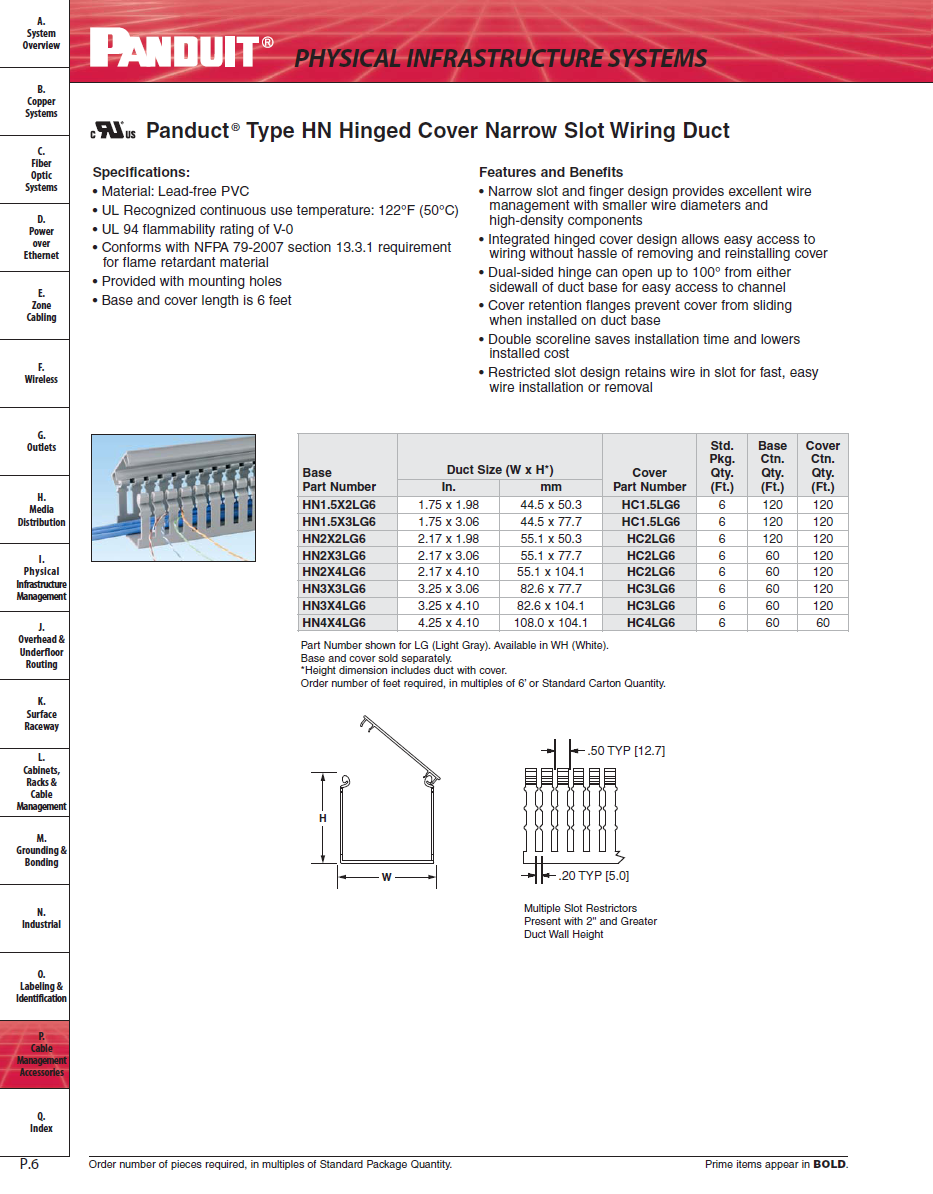

Panduct® Type HN Hinged Cover Narrow Slot Wiring Duct
Specifications:
• Material: Lead-free PVC
• UL Recognized continuous use temperature: 122°F (50°C)
• UL 94 flammability rating of V-0
• Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material
• Provided with mounting holes
• Base and cover length is 6 feet
Features and Benefits
• Narrow slot and finger design provides excellent wire management with smaller wire diameters and high-density components
• Integrated hinged cover design allows easy access to wiring without hassle of removing and reinstalling cover
• Dual-sided hinge can open up to 100° from either sidewall of duct base for easy access to channel
• Cover retention flanges prevent cover from sliding when installed on duct base
• Double scoreline saves installation time and lowers installed cost
• Restricted slot design retains wire in slot for fast, easy wire installation or removal
• Material: Lead-free PVC
• UL Recognized continuous use temperature: 122°F (50°C)
• UL 94 flammability rating of V-0
• Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material
• Provided with mounting holes
• Base and cover length is 6 feet
Features and Benefits
• Narrow slot and finger design provides excellent wire management with smaller wire diameters and high-density components
• Integrated hinged cover design allows easy access to wiring without hassle of removing and reinstalling cover
• Dual-sided hinge can open up to 100° from either sidewall of duct base for easy access to channel
• Cover retention flanges prevent cover from sliding when installed on duct base
• Double scoreline saves installation time and lowers installed cost
• Restricted slot design retains wire in slot for fast, easy wire installation or removal
Numero de Parte PANDUIT:
HN1.5X2LG6, HN1.5X3LG6, HN2X2LG6, HN2X3LG6, HN2X4LG6, HN3X3LG6, HN3X4LG6, HN4X4LG6
