Shielded Jacketed Vari Twist

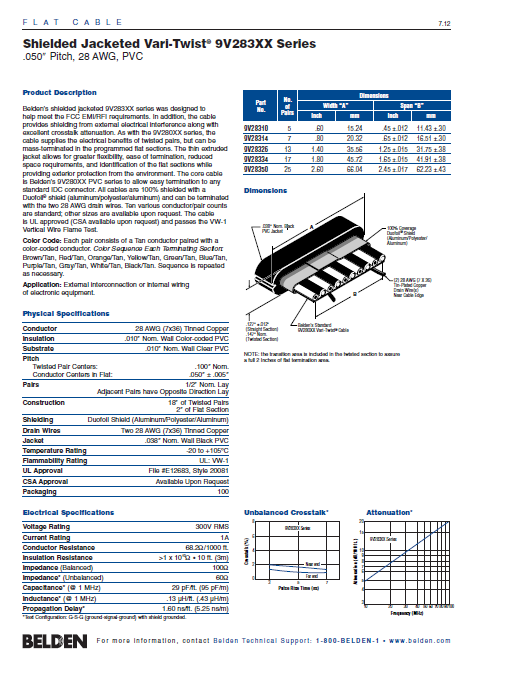

Shielded Jacketed Vari-Twist® 9V283XX Series
.050″ Pitch, 28 AWG, PVC

Product Description
Belden’s shielded jacketed 9V283XX series was designed to
help meet the FCC EMI/RFI requirements. In addition, the cable
provides shielding from external electrical interference along with
excellent crosstalk attenuation. As with the 9V280XX series, the
cable supplies the electrical benefits of twisted pairs, but can be
mass-terminated in the programmed flat sections. The thin extruded
jacket allows for greater flexibility, ease of termination, reduced
space requirements, and identification of the flat sections while
providing exterior protection from the environment. The core cable
is Belden’s 9V280XX PVC series to allow easy termination to any
standard IDC connector. All cables are 100% shielded with a
Duofoil® shield (aluminum/polyester/aluminum) and can be terminated
with the two 28 AWG drain wires. Ten various conductor/pair counts
are standard; other sizes are available upon request. The cable
is UL approved (CSA available upon request) and passes the VW-1
Vertical Wire Flame Test.
Color Code: Each pair consists of a Tan conductor paired with a
color-coded conductor. Color Sequence Each Terminating Section:
Brown/Tan, Red/Tan, Orange/Tan, Yellow/Tan, Green/Tan, Blue/Tan,
Purple/Tan, Gray/Tan, White/Tan, Black/Tan. Sequence is repeated
as necessary.
Application: External interconnection or internal wiring
of electronic equipment.
Physical Specifications
Conductor 28 AWG (7×36) Tinned Copper
Insulation .010″ Nom. Wall Color-coded PVC
Substrate .010″ Nom. Wall Clear PVC
Pitch
Twisted Pair Centers: .100″ Nom.
Conductor Centers in Flat: .050″ ± .005″
Pairs 1/2″ Nom. Lay
Adjacent Pairs have Opposite Direction Lay
Construction 18″ of Twisted Pairs
2″ of Flat Section
Shielding Duofoil Shield (Aluminum/Polyester/Aluminum)
Drain Wires Two 28 AWG (7×36) Tinned Copper
Jacket .038″ Nom. Wall Black PVC
Temperature Rating -20 to +105°C
Flammability Rating UL: VW-1
UL Approval File #E12683, Style 20081
CSA Approval Available Upon Request
Packaging 100
Electrical Specifications
Voltage Rating 300V RMS
Current Rating 1A
Conductor Resistance 68.2Ω/1000 ft.
Insulation Resistance >1 x 1010Ω • 10 ft. (3m)
Impedance (Balanced) 100Ω
Impedance* (Unbalanced) 60Ω
Capacitance* (@ 1 MHz) 29 pF/ft. (95 pF/m)
Inductance* (@ 1 MHz) .13 μH/ft. (.43 μH/m)
Propagation Delay* 1.60 ns/ft. (5.25 ns/m)

Numero de Parte Belden: 9V28310, 9V28314, 9V28326, 9V28334, 9V28350
