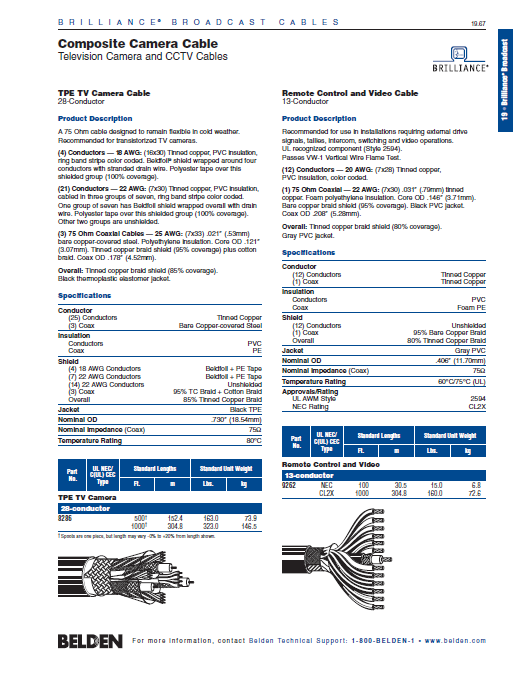

Composite Camera Television CCTV Cables

Composite Camera Cable
Television Camera and CCTV Cables

TPE TV Camera Cable
28-Conductor
Product Description
A 75 Ohm cable designed to remain flexible in cold weather.
Recommended for transistorized TV cameras.
(4) Conductors — 18 AWG: (16×30) Tinned copper, PVC insulation,
ring band stripe color coded. Beldfoil® shield wrapped around four
conductors with stranded drain wire. Polyester tape over this
shielded group (100% coverage).
(21) Conductors — 22 AWG: (7×30) Tinned copper, PVC insulation,
cabled in three groups of seven, ring band stripe color coded.
One group of seven has Beldfoil shield wrapped overall with drain
wire. Polyester tape over this shielded group (100% coverage).
Other two groups are unshielded.
(3) 75 Ohm Coaxial Cables — 25 AWG: (7×33) .021″ (.53mm)
bare copper-covered steel. Polyethylene insulation. Core OD .121″
(3.07mm). Tinned copper braid shield (95% coverage) plus cotton
braid. Coax OD .178″ (4.52mm)

Remote Control and Video Cable
13-Conductor
Product Description
Recommended for use in installations requiring external drive
signals, tallies, intercom, switching and video operations.
UL recognized component (Style 2594).
Passes VW-1 Vertical Wire Flame Test.
(12) Conductors — 20 AWG: (7×28) Tinned copper,
PVC insulation, color coded.
(1) 75 Ohm Coaxial — 22 AWG: (7×30) .031″ (.79mm) tinned
copper. Foam polyethylene insulation. Core OD .146″ (3.71mm).
Bare copper braid shield (95% coverage). Black PVC jacket.
Coax OD .208″ (5.28mm).

Numero de Parte Belden: 8286, 9262
