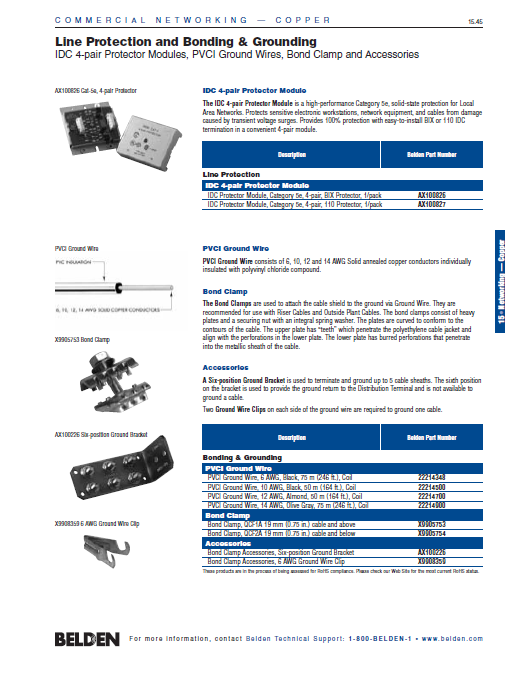

Line Protection and Bonding & Grounding
IDC 4-pair Protector Modules, PVCI Ground Wires, Bond Clamp and Accessories

IDC 4-pair Protector Module
The IDC 4-pair Protector Module is a high-performance Category 5e, solid-state protection for Local
Area Networks. Protects sensitive electronic workstations, network equipment, and cables from damage
caused by transient voltage surges. Provides 100% protection with easy-to-install BIX or 110 IDC
termination in a convenient 4-pair module.

PVCI Ground Wire
PVCI Ground Wire consists of 6, 10, 12 and 14 AWG Solid annealed copper conductors individually
insulated with polyvinyl chloride compound.
Bond Clamp
The Bond Clamps are used to attach the cable shield to the ground via Ground Wire. They are
recommended for use with Riser Cables and Outside Plant Cables. The bond clamps consist of heavy
plates and a securing nut with an integral spring washer. The plates are curved to conform to the
contours of the cable. The upper plate has “teeth” which penetrate the polyethylene cable jacket and
align with the perforations in the lower plate. The lower plate has burred perforations that penetrate
into the metallic sheath of the cable.
Accessories
A Six-position Ground Bracket is used to terminate and ground up to 5 cable sheaths. The sixth position
on the bracket is used to provide the ground return to the Distribution Terminal and is not available to
ground a cable.
Two Ground Wire Clips on each side of the ground wire are required to ground one cable.
